|Place of Origin:||NINGBO,CHINA|
|Minimum Order Quantity:||2 SET|
|Packaging Details:||Bare bundle / 40HQ|
|SIZE:||8.7× 8.6m||Frame Mteria:||0.75mm/0.95mm/1.15mm Steel Frame With AZ150 Zinc Coating|
|Ceiling Material:||CFC Board/ Gypsum Board+others||Color:||Almost Any Wooden Color|
|Design:||Customer Design Avaliable||Use:||Hotel, House, Kiosk,Booth, Office, Shop, Villa, Workshop,Plant|
Australia Standard custom modular homes,
WPC cladding custom modular homes,
Australia Standard pre fabricated homes
Australia Standard Design Prefab Garden Studio For small house kit
5 bedrooms 3 bathrooms 1 living room 385.6 m²

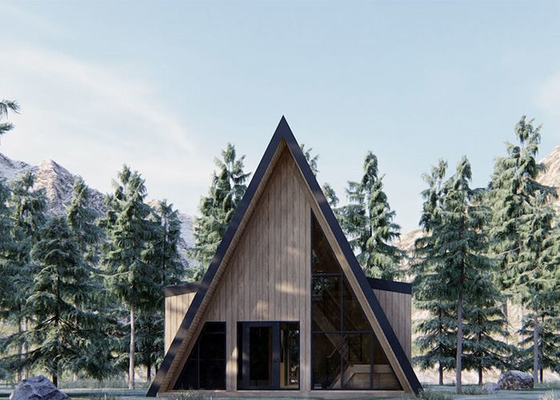

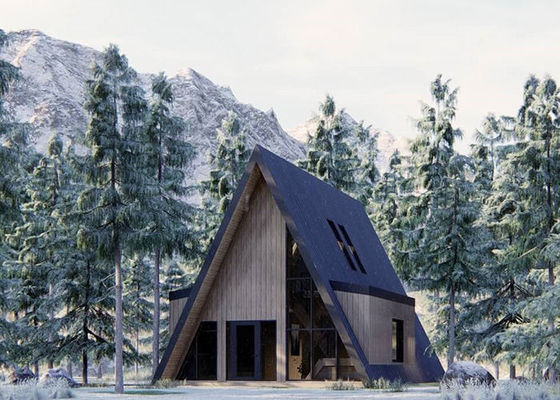

Living in a cabin can be suffocating for some people. But, if it is located in the lap of nature, this thing will definitely give you an awesome experience. Talking about this architecture- cabins on the mountain, it is located on the mountain and Therefore, the view that you will get from the cabins is, no doubt, amazing. The mountain trees behind the cabins and the open view in the front will definitely infuse your mind with serenity. Anyway, we have elaborated this amazing architecture here..
Ground Floor Area:74.82㎡
Total Area: 117.82㎡
Optimal integration with the landscape
The house occupies an optimal area on the land plot and improves the ergonomics of the general plan.
Ergonomics of interior spaces
The house has simple and convenient internal layouts, designed considering the diagrams and routes of movement.
It can be installed in the shortest time possible.
|Name||Hotal Units||Application||Luxury Hotal Units for living|
|Color||White, red, yellow, etc, depending on the customer’s request||Feature||1.Cabins
2.100% finished in factory
|Material||Hotal Units and other panel material||Certificate||
Main structure: Light Gauge Steel Frame
Wall cladding: WPC cladding
Insulation material: Glass wool/ Rock Wool
Ceiling material: PVC/Gypsum board+others
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy/PVC
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure
the toilet, washbasin, shower, kitchen, study room etc.
|1||Foundation||Fixing to foundation||Chemical bolt|
|2||Structure||Steel frame wall||0.75/0.95/1.15mm steel wall|
|Roof truss||0.75/0.95/1.15mm steel truss|
|Joist (chassis)||0.75/0.95/1.15mm steel joist|
|3||Roofing system||Batten||35mm batten|
|Vapor barrier||Normal vapor barrier|
|4||Ceiling system||Batten||22mm batten|
|Ceiling||Gypsum/MGO board, etc.|
|5||Exterior wall||Ext. wall cladding||Optional|
|Vapor barrier||Normal vapor barrier|
|7||Floor system||Underneath of floor||CFC/ALC board, etc.|
(if in plan)
(if in the plan)
|10||Doors and windows||Exterior door||Optional|
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Deepblue Smarthouse was established in the city of NINGBO, CHINA in 2009, thriving and expanding globally being located just 15 minutes from one of the world’s busiest ports - PORT NINGBO. Providing clients with dynamic, superior & cost-effective solutions utilizing light gauge steel frames for housing and commercial projects. Whilst many claims to be professional housing manufacturers, Deepblue never rest, but stand firm with partners and customers delivering turnkey solutions that are code compliant for your country, this commitment to excellence has taught, that the long term knowledge and experience, makes Deepblue the leader in this industry.
Deepblue Smarthouse is focused on providing its client with professional smart housing solutions through products that result in unprecedented customer satisfaction and long-term relationships that allow us as partners, to deliver smart houses for the world!
If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house, light steel structure, Tiny House on wheels, social house, apartment building, commercial building...
Only Need You To Provide Us: house area, how many floor and bedrooms, luxury or normally, or low-cost configuration.
We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc. many style house.
Contact Person: Vincent
Structure: S1397 G550 Z275 0.75/0.95mm wall structure AS1397 G550 Z275 0.95mm Steel floor Joist AS1397 G550 Z275 0.75/0.95mm roof truss Roof reinforcing layer for roof 15mm OSB board Vapor Barrier for roof Normal Vapor Barrier Water‐Proof Layer for roof Asphalt Water
Vapor Barrier for roof: Normal Vapor Barrier
Roofing Tile: 0.5mm Colorbond Roofing Sheet
Exterior wall batten: 22mm Batten
