Prefabricated Fordable Portable Emergency Shelter / Emergency Housing Emergency Housing Shelter

Place of Origin NINGBO,CHINA
Brand Name DEEPBLUE
Certification AS/NZS,UL,AISI,
Model Number DP-LT-01
Minimum Order Quantity 2 SETS
Price 150-250 USD/SQM
Packaging Details Bare bundle / 40HQ
Delivery Time 30-45 days
Payment Terms L/C, T/T, Western Union
Supply Ability 12000 houses/year
Product Details
Frame Mterial Steel Door Steel Security Door
Window Aluminum Alloy/PVC Roof Corrugated Tiles
Insulation Material EPS Sandwich Wall Cladding Colorbond
External Wall EPS Sandwich Floor Laminate/wooden
Color Grey(same As The Pics)
High Light

emergency disaster shelters

,

emergency housing shelter

Leave a Message
Product Description

Prefabricated Fordable Portable Emergency Shelter / Emergency Housing Emergency Housing Shelter



Quick Detail:



Name

lotus  house

Application

After-disaster housing

Color

grey(same as the pics)

Feature

1.rapid deployment

2.safe and durable

3.flexible design

Material

Sandwich panel and other parts material

Certificate

CE





Description:



Roof: 50mm EPS Sandwich panel

Wall: 50mm EPS Sandwich panel

Door: Steel door

window: Aluminium window





Applications:



Hotel, House, Office, Shop, etc.

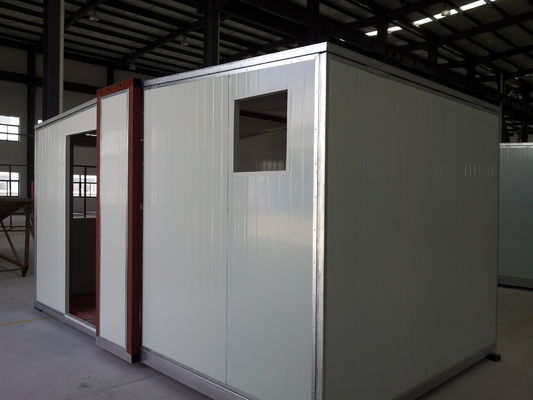

Prefabricated Fordable Portable Emergency Shelter / Emergency Housing Emergency Housing Shelter 0



Specifications



15mins quickly portable emergency shelter :

The shelters can be used attached or detached from the trucks, which means only one truck is

required to use several shelters at the same time.

They’re made to be moved easily and quickly, and can be transported by ship, train, truck,

air transport or helicopter.



DeepBlue Lotus house is a modular, multipurpose housing solution that will serve your needs

and requirements in the best possible manner.


Prefabricated Fordable Portable Emergency Shelter / Emergency Housing Emergency Housing Shelter 1



Prefabricated Fordable Portable Emergency Shelter / Emergency Housing Emergency Housing Shelter 2





The working system



 Dpbl lotus house.jpg





Dimension and Weight



  • External Dimension (L*W*H):5790*4890*2520
  • Internal Dimension(L*W*H):  5690*4790*2415
  • Weight:2000kg per unit


Steel Framework


Material:  Mainframes are made from channel steel and RHS cube. Whole frames are well welded in the factory.



Surface working: all frames are painted Anti-rust paint.




 Floor



Composition:



  • External wainscot: 0.3mm steel sheet.
  • insulation filling:  EPS in a thickness of 50mm among steel transverse supports
  • steam blockade: PE foil in a thickness of 80μm
  • waterproof plywood panel in a thickness of 15mm for dry area
  • PVC flooring in a thickness of 1.5mm.



Permitted loading: 3.50 KN/m²
Coefficient of thermal conductivity: K=0,032 W/mk





 Roof



Composition:



  • Roofing is made of 0.35mm color steel sheet
  • Roofing panel:  50mm EPS sandwich panel



Permitted loading: 1.00 KN/m²
Coefficient of thermal conductivity: K=0,030 W/m.k





 Façade wall



Wall panels are made of 50mm with a 10kg density EPS foam sandwich panel. All panels are fixed in the factory and hinged with a roofing panel. The thickness of steel for the panel is 0.35mm outside and 0.35mm inside.



Permitted loading: 0.60 KN/m²
Coefficient of thermal conductivity: K=0,028 W/m.K



Door



External door: steel, single fold, filled door with opening dimensions of 850X2000mm, furnished with a cylinder lock with 3 keys. The doorframe is made of galvanized steel, with overall dimensions of 900X2025mm, 50mm thick, made of painted sheet metal as the framework



Windows



Windows are made of aluminum, white color, with dimensions 900X1100mm, single glass in a thickness of 4mm.




Electricals Installation



Standard: according to VDE 100 regulations or CCC standard, UL standard.
Voltage: 220/380 V, 50 Hz Network connections: CEE-connection plus/socket, 3-pole 32 A, 220V~, mounted on the top frame in upper corners of the shorter sidewall
Inner distribution system: NyM-J cables of suitable dimensions, flush-mounted Protection: protective current switch (40/4E-0,03A), automatic fuses (B-characteristics) of suitable power (10A, 16A)
Earthling: galvanized connector with a steel plate of dimensions 30x80mm welded on the bottom frame





Fittings:



  • electric distribution box – 1x40/4E-0,03A (protective current switch), 1x10A &2x16A (automatic fuses)
  • single fluorescent lights 1x40W – 4 each
  • flush-mounted sockets 220 V– 6each
  • flush-mounted switches 220 V – 2each

Company information:

Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation, and other services as a whole. We always committed to providing every family with a comfortable, safe, and affordable home, and also can provide a one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects, and so on. Our products have been exported to more than 60 countries and NGOs. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture
