Light Steel Frame Wooden Home Beach Bungalows With Shower , Kitchen

Light Steel Frame Wooden Home Beach Bungalows With Shower , Kitchen

    • Light Steel Frame Wooden Home Beach Bungalows With Shower , Kitchen
    • Light Steel Frame Wooden Home Beach Bungalows With Shower , Kitchen
  • Light Steel Frame Wooden Home Beach Bungalows With Shower , Kitchen

    Product Details:

    Place of Origin: NINGBO,CHINA
    Brand Name: DEEPBLUE
    Certification: AS/NZS,UL,AISI,
    Model Number: DP-B-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: 200-500 USD/SQM
    Packaging Details: Bare bundle / 40HQ
    Delivery Time: 30-45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 12000 houses/year
    Contact Now
    Detailed Product Description
    External Wall: 100 Or 50 Mm ALC Panel/WPC Board/fibre Cement Insulation: Glass Wool/EPS/XPS/PU Sandwich Panel
    Frame Material: 0.75 Mm/0.95 Mm/1.15 Mm Steel Frame With AZ150 Zinc Coating Ceiling Material: MGO Board/ Gypsum Board+others
    Floor: Laminate/wooden/tile Door: Metal Security Door/PVC Sliding Door
    Roofing: EPS Sandwich Panel/steel Roofing/asphalt Other Fitting: Toilet, Washbasin,shower ,kitchen,etc
    High Light:

    luxury beach bungalows

    ,

    garden beach bungalows

    ,

    beach house bungalow

    Light Steel Frame Wooden Home Beach Bungalows With Shower, Kitchen





    This classic 3 bed, 1 bath home offers a spacious layout with immaculate natural lighting. Recently remodeled, the interior features refinished hardwood flooring and updated lighting fixtures throughout. The kitchen incorporates high-end appliances and brand new cabinetry. There's a formal dining room where you can catch up with your family over dinner or host your next dinner party. And access to a wonderful backyard veranda--hello weekend BBQs!

    • This prefabricated house is a bungalow series
    • Structure form of stilts
    • The family house makes you feel the warmth and happiness of home
    • Reasonable distribution of spatial pattern

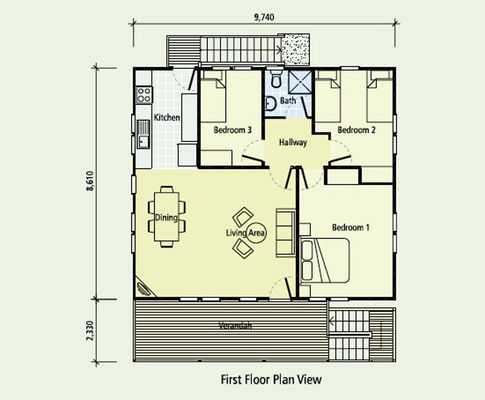

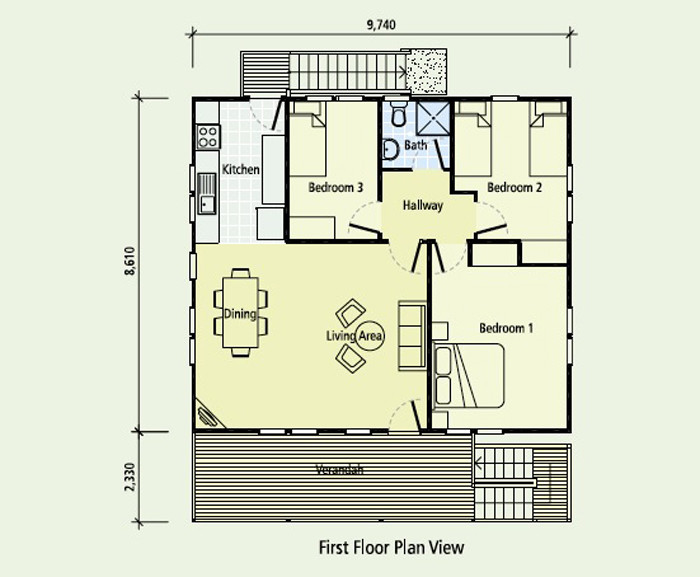

    Floor plan

    • There are three bedrooms in total, which can meet the needs of a family
    • There is a dining room and living room, which can be a chatting area
    • The convenient kitchen makes you enjoy cooking
    • There is 93 m² floor and 17 m² verandahs,totally 100 m²






    Quick Detail:



    Name

    Wooden bungalow

    Application

    Wooden bungalow for holiday living

    Color

    Yellow, white, etc depend on customer’s request

    Feature

    1.quickly to assemble on site

    2.good earthquake-proof

    3.green, energy save

    4.design for customers

    Material

    light steel and other parts material

    Certificate

    CE,ISO,SAA,ETC







    Description:



    Main structure: Light Gauge Steel

    Wall cladding: ALC panel/fibre cement cladding+MGO board/gypsum board

    Insulation material: glass wool or also EPS/XPS/PU sandwich panel

    Ceiling material: MGO board/gypsum board

    Roof: EPS sandwich panel/steel roofing/asphalt shingle

    Flooring: laminate flooring/wooden/PVC carpet

    Door: steel security door/WPC or wooden door

    Window: aluminum alloy/PVC

    Other fittings: toilet, washbasin, shower, kitchen, etc.

    Lifetime: 100 years for structure





    Who we are?

    DeepBlue Smarthouse Co. Ltd is specialized in the manufacturing of various housing solutions. The technology used in the DeepBlue Products is based on the most advanced Light Gauge Steel Frame system that is being used worldwide for more than 3 decades. Our professional's staff will customize, create, and design according to individual customer requirements.

    We think GREEN and use therefore environmentally friendly and recyclable materials, helping to decrease pollution on site and protect mother nature.

    Our houses are affordable and can be used in various areas and fulfill different applications such as humanitarian relief, mining accommodations, residential buildings, clinics, offices, schools, dormitories, military barracks, and many others.



     Light Steel Frame Wooden Home Beach Bungalows With Shower , Kitchen 2Light Steel Frame Wooden Home Beach Bungalows With Shower , Kitchen 3







    Design code:



    (1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.

    (2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.

    (3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.

    (4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.





    Why Choose Light Gauge Steel Structure?



    1)Lifetime for structure: 100 years.

    2)Earthquake resistance: mix more than 8 grades.

    3)Wind resistance:max 60m/s.

    4)Fire resistance: all the materials used can be fire resistance.

    5)Snow resistance: max 2.9KN/m²as required

    6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.

    7)High acoustic insulation:60db of exterior wall 40db of interior wall

    8)Insect prevention: Free from the damages by insects, such as white ants

    9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean

    10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.

    11)Installation: the average is one worker one day install one SQM.

    12)Installation guide: dispatch engineer to guide on site.





    Material Configuration:



    No.

    Item

    Materials

    Luxury house

    No.

    Item

    Materials

    Luxury house

    1

    Foundation

    Fixing to Foundation

    chemical bolt

    6

    Roof system

    roofing

    ceramic/asphalt shingle

    cushion tape between frame and foundation

    asphalt tape

    water-proof layer

    the heavy-duty asphalt layer

    2

    House Structure System

    The main structure for the house

    1.15mm thick *89mm wide Steel frame

    strength board

    15mm OSB board

    Floor Joist   (if multi-stories)

    1.15mm steel joist

    Insulation/batt

    heavy duty glass wool

    Connection

    self-drilling stress

    eaves board

    12mm MgO board

    3

    Exterior Wall

    Ext. wall Cladding

    50MM ALC PANEL or PU sandwich panel

    downpipe system

    PVC downpipe system

    Reinforce layer

    12mm OSB board

    7

    Kitchen and bathroom

    Kitchen cabinet

    high-quality cabinet

    Vapor barrier

    DUPONT Vapor barrier sheet

    wall cabinet

    high-quality wall cabinet

    Insulation/batt

    heavy duty glass wool

    countertop

    stone countertop

    inter of ext .wall

    double 12mm plasterboard

    Sink

    high-quality stainless sink with faucet

    4

    Interior Partition wall

    siding

    double 12mm plasterboard

    toilet

    high-quality toilet

    cornering

    high quality plaster cornering

    bathtub

    high-quality bathtub

    Skirting

    solid wood and tile

    shower

    high-quality shower

    5

    Floor System

    subfloor for ground floor (Wet area )

    NULL

    8

    Doors and windows, plumbing

    Exterior door

    security door

    Subfloor for other floors ( Wet area )

    20mm fiber cement board

    windows

    double glass Alum. Windows

    flooring for ground floor (dry area)

    wooden flooring

    interior door

    high-quality plywood door

    flooring for ground floor ( wet area)

    high-quality ceramic tile

    hot&cold water pipe

    high-quality PPR PIPE

    Flooring for other floors (wet area)

    high-quality ceramic tile

    Downpipe

    high-quality PVC downpipe

    Flooring for other floors dry area

    wooden flooring

    9

    Electrical system and multimedia

    telephone cable

    included

    Insulation

    glass wool

    TV. CABLE

    included

    The ceiling for dry area

    12mm plasterboard

    internet cable

    included

    the ceiling for wet area

    PVC ceiling

    electrical cables

    included

    stairs (If have)

    steel stairs with armrest

    lighting

    ceiling light

    notice:

    distribution box

    Included

    1

    EX.W mean EX.works, pls find an explanation from Wikipedia

    switch

    Included

    2

    This price does not include foundation, cement works, and any other cost.

    11

    Others

    INSTALLATION FEE

    Optional

    3

    This price does not include a design fee.

    SUPERVISOR

    Optional

    4

    This price does not include any furniture and others.

    5

    This price is only for listed materials

    6

    All electrical is based on Chinese standard equipment.

    7

    The total window area is no more than 15% of the building area. The ceiling height is calculated 2.5m.

    8

    The final price needs to be confirmed based on final drawings and order-confirm-letter.

    9

    If you have any questions, pls contact DEEPBLUE.
