Flordia Tiny house

3 bedroom 1 bathroom 1 Kitchen 27.1 m²

The Florida Tiny House, developed by DeepBlue SmartHouse, is a remarkable project in the realm of tiny houses. Built with a light steel frame design, this innovative dwelling offers a compact and efficient living space that has captured the hearts of individuals around the world. DeepBlue SmartHouse has successfully exported various models of their tiny houses to numerous regions, including Australia, the United States, the United Kingdom, France, New Zealand, and Oceania.

Details:

• Simple and elegant appearance,
• Enough living and activity space with one large bed.
• The duplex has doors and stairs leading to the roof terrace.

The Florida Tiny House is an exceptional example of the company's commitment to creating sustainable and functional living environments. With a total area of 27.1 square meters, this compact yet well-designed dwelling encompasses a cozy living area, a fully equipped kitchen, three comfortable bedrooms, and a convenient bathroom. Despite its modest size, the Florida Tiny House offers a versatile and practical layout, making the most of every square meter.

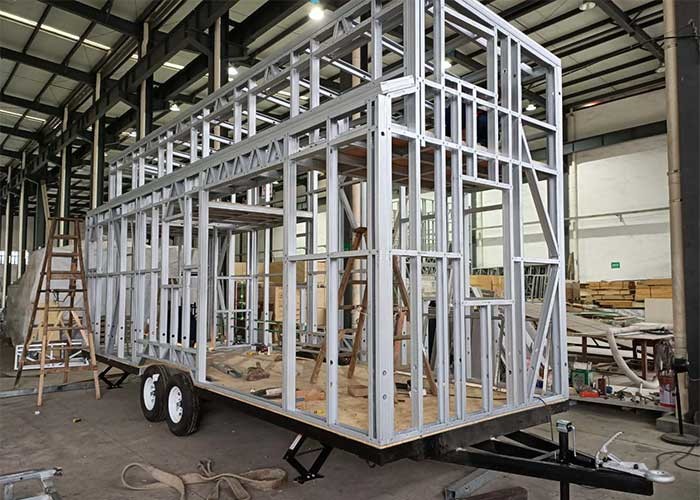

Constructed with a light steel frame, the Florida Tiny House possesses several notable advantages. The lightweight nature of the steel structure allows for easy transportation and installation, providing flexibility for various project sites. The external size measures 2.35 meters in width and 7.4 meters in length, while the internal size measures 2.08 meters in width and 6.4 meters in length. Standing at a height of less than 4 meters, the house adheres to standard regulations and offers a comfortable living space.

The total weight of the Florida Tiny House is approximately 3.5 tons, ensuring stability and durability without compromising its portability. DeepBlue SmartHouse prioritizes quality and utilizes premium materials to ensure the longevity and resilience of their structures. The Florida Tiny House boasts excellent resistance to climate fluctuations, pests, and corrosion, guaranteeing a safe and secure living environment for its residents.

DeepBlue SmartHouse, as the supplier of the Florida Tiny House, has a proven track record in delivering exceptional products worldwide.

​Floor Plan

• The ground floor has enough space for activity, including the kitchen, bathroom, and living room.
• The loft has two beds, can contain at least 4 persons.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
