DEEPBLUE SMARTHOUSE is a comprehensive provider of prefab home solutions, offering a range of options for developers, builders, architects, and private buyers. They use metal frame construction, which can provide a durable and cost-effective solution for building homes.

Prefab homes are a type of housing that is built offsite in a factory and then assembled on location. They offer a number of benefits, including faster construction times, lower costs, and increased energy efficiency compared to traditional site-built homes. Metal frame prefab homes, in particular, are known for their durability and ability to withstand extreme weather conditions, making them a good choice for a wide range of locations and climates

Quick Detail:

Description:

Main structure: Light Gauge Steel

Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board

Insulation material: Insulation material

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet, washbasin, shower, kitchen, etc.

Lifetime: 100 years for structure

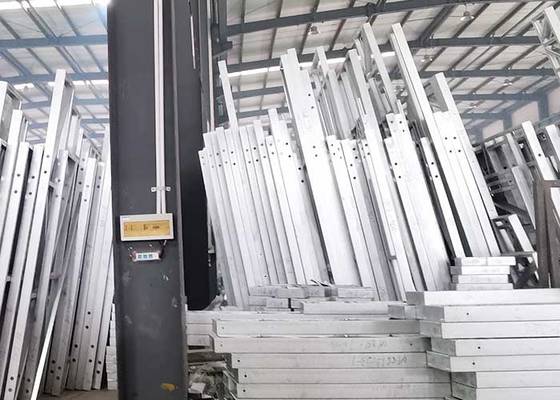

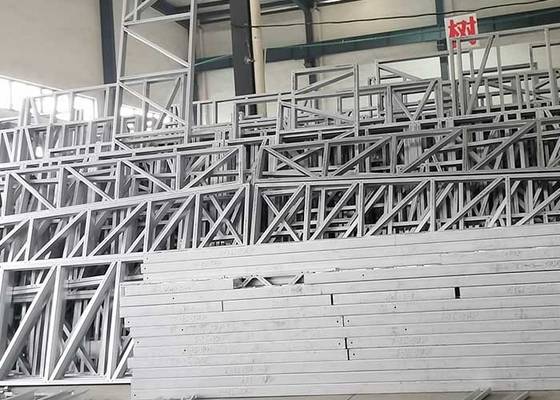

Product photos:

Product Description:

DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following:

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis: 89mm light gauge steel flooring chassis

4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc.

5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration

6. interior lining: 9mm fiber cement board,water-proof,termite-proof, security and healthy

7. ceiling: 8mm PVC ceiling panel

8. insulation: 89mm glass wool insulation with good soundproof performance.

9.windows: PVC sliding windows

10.exterior door: high-quality aluminum sliding windows

11.interior door: painted wood door

12.bathroom: shower, washbasin, toilet included

13. roofing: corrugated steel roofing with the gutter system

14. veranda deck: W.P.C veranda flooring.

ISO standard light gauge steel for the main structure. fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275galvanized steel profile, strength:550Mpa ]

2)Earthquake resistance: mix more than 8 grades.

3)Wind resistance:max 60m/s.

4)Fire resistance: all the materials used can be fire resistance.

5)Snow resistance: max 2.9KN/m²as required

6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.

7)High acoustic insulation:60db of exterior wall 40db of interior wall

8)Insect prevention: Free from the damages by insects, such as white ants

9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean

10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.

11)Installation: the average is one worker one day install one SQM.

12)Installation guide: dispatch engineer to guide on site.

Company information:

Deepblue Smarthouse has been engaged in the light steel construction industry for many years, the main scope is light steel villas, modular houses, apartments, holiday houses, luxury cars, and residences, and covers more than 60 countries and regions. Relying on rich experience in overseas projects and following the principle of quality first and service first, the company provides customers with internationally leading comprehensive services such as program design, construction drawing design, parts processing, and on-site construction management. Today, we ensure that our houses are transferred from China to the rest of the world through construction, sales, financing, leasing, etc. Since its establishment in 2009, the company has provided more than 5,000 high-quality holiday villas, senior properties, luxury private residences, RV camps, apartments, and commercial buildings to the world, and has won many awards and honors.

Service Process

customized design service & personalized option

If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house

Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.

We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many style house.
