Prefab Sandwich Panel House Steel Structure Prefabricated Hotel Unit

Prefab Sandwich Panel House Steel Structure Prefabricated Hotel Unit

1 Bed or 2Bed hotel unit   20㎡ or 30㎡

Whether you're traveling with family or sharing the journey with friends, DEEPBLUE SMARTHOUSE has redefined the concept of hospitality with their innovative Modular Hotel. Offering two distinct room sizes – 30 square meters and 20 square meters – and a modular design that adapts to your unique needs, this is a hotel experience like no other.

MATERIAL DESCRIPTION

1. Main steel structure: Q550 standard steel structure, which is thin-walled cold-formed light steel, use mortise and tenon method and screw to strengthen it, that is easy to install but very strong, the life would be 50 years.

2. Surface Treatment: Zinc Plating

3. Wall & Roof: MABIS exclusive patented panel - aluminum alloy with 100mm thickness high-density polyurethane composite board with good thermal insulation and sound insulation advantage. The hard PU layer is fireproof, fire resistance, and high-temperature resistance. The material additional fire retardant, so the material characteristic is difficult autoignition and self-extinguishing, furthermore haven't harmful gases when they are at high temperature.

4. Window & door: Aluminum alloy frame with hollow double glass window and Wood door or glass door

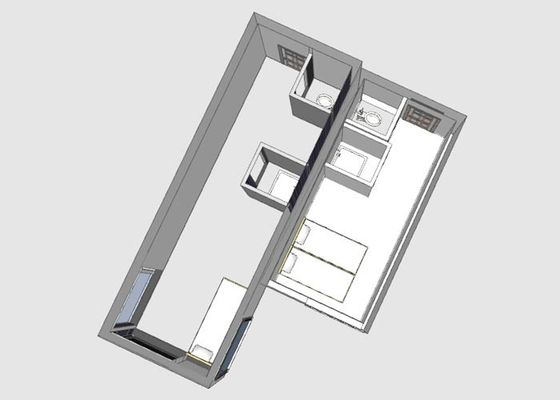

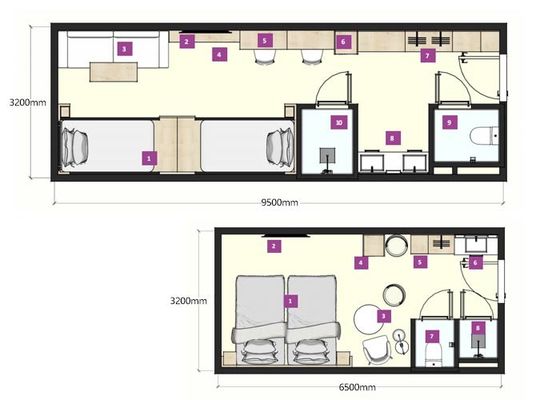

House picture and floor plan

The DEEPBLUE SMARTHOUSE Modular Hotel is designed with the needs of families and friends in mind. Each room comes with its own set of advantages, catering to different preferences and group sizes. The 30-square-meter option offers spacious comfort for families, while the 20-square-meter choice provides a cozy setting for two friends to share.

DEEPBLUE light steel system (advantages):
1. ENERGY Saving
The Wall and roof adopt new energy-saving and environmental material, making a Completely closed weatherproof system, avoiding the “Cold bridge” effect, small temperature changing, low heat conduction, and prominent energy saving effect which can meet the updated standard of over 65% energy-saving. When the outside temperature is 0℃, indoor temperature could keep 17℃at least, and when the outdoor temperature reaches 30℃, indoors is still 21℃. Compared with brick house, it can save money due to AC and energy charge, also can save power 30% at least from the AC energy expand in winter and summer, and the total embodied energy expands will save 30%.

2. Environment Friendly
During construction, the mainly dry construction is used at the working site, saving water.100% steel frame material is recyclable, above 80% other material is recyclable, reduces the environmental damage from the material; Also, CO2 emissions reduced 67% than the brick house; Meeting the energy-saving requirements.

3. Saving Floor Space
The wall thickness of our steel structure building is only half of the brick wall, so the usable floor area can reach 92%. Compared to the traditional brick, the floor area increases by 10%. Space can be divided freely with high utilization.

Company information:

Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation, and other services as a whole. We always committed to providing every family with a comfortable, safe, and affordable home, and also can provide a one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects, and so on. Our products have been exported to more than 60 countries and NGOs. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture
