Two Layers Prefab Villa Light Gauge Steel Structure Pre Manufactured Homes

Place of Origin NINGBO,CHINA
Brand Name DEEPBLUE
Certification AS/NZS,UL,AISI,
Model Number Kingsley25
Minimum Order Quantity 1 SET
Price Negotiation
Packaging Details Bare bundle / 40HQ
Delivery Time 30-45days
Payment Terms L/C, T/T, Western Union
Supply Ability 12000houses/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Main Structure Light Gauge Steel Wall Material ALC Panel/fiber Cement Cladding+MGO Board/gypsum Board
Insulation Material Glass Wool/EPS/XPS/PU Sandwich Panel Door Steel Security Door/WPC Or Plywood Door
Window Aluminum Alloy/PVC Life Time 100 Years For Structure
High Light

pre manufactured homes

,

contemporary modular homes

Leave a Message
Product Description

Two Layers Prefab Villa Light Gauge Steel Structure Pre Manufactured Homes



Two Layers Prefab Villa Light Gauge Steel Structure Pre Manufactured Homes 0 4 bedrooms Two Layers Prefab Villa Light Gauge Steel Structure Pre Manufactured Homes 1 3 bathrooms Two Layers Prefab Villa Light Gauge Steel Structure Pre Manufactured Homes 2 1 car spaces Two Layers Prefab Villa Light Gauge Steel Structure Pre Manufactured Homes 3 229.1m²
Two Layers Prefab Villa Light Gauge Steel Structure Pre Manufactured Homes 4

New modern design two-story villa with garage, living room on the first floor, kitchen, bathroom, four bedrooms on the second floor, the master bedroom with a bathroom, cloakroom, gives the master private space to enjoy, and the guest bedroom can meet the accommodation needs

Floor plan
Two Layers Prefab Villa Light Gauge Steel Structure Pre Manufactured Homes 5

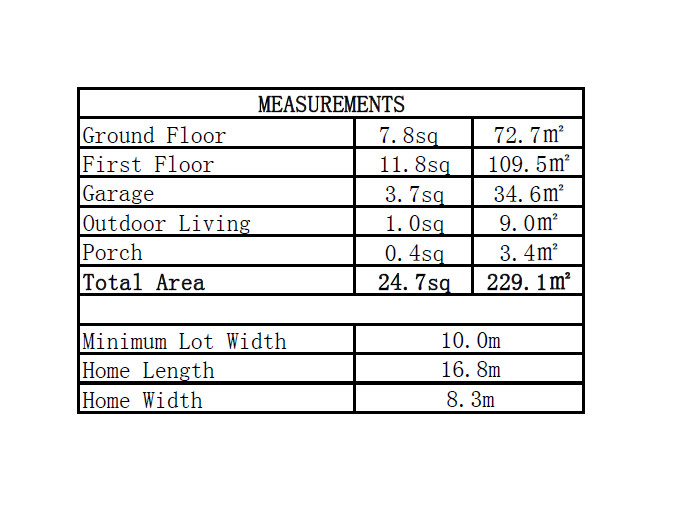

MEASUREMENTS
Ground Floor 7.8sq 72.7㎡
First Floor 11.8sq 109.5㎡
Garage 3.7sq 34.6㎡
Outdoor Living 1.0sq 9.0㎡
Porch 0.4sq 3.4sq
Total Area 24.7sq 229.1㎡

Minimum Lot Width 10.0m
Home Length 16.8m
Home Width 8.3m






Description:

Main structure: Light Gauge Steel
Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board
Insulation material: glass wool/EPS/XPS/PU sandwich panel
Ceiling material: MGO board/gypsum board
Floor/foundation material: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or plywood door
Window: aluminum alloy/PVC
Roofing: EPS sandwich panel/steel roofing/asphalt shingle
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure.

Quick Detail:

Name prefabricated villa Application Villa for living
Color According to your material choice Feature

1.quickly to assemble on-site;
2.good earthquake proof;
3.green and energy save;

Material light steel and other parts material Certificate CE,ISO,SAA,ETC



Applications:

People can use it as House, Office, Villa, and other prefab steel houses.

Two Layers Prefab Villa Light Gauge Steel Structure Pre Manufactured Homes 6


Why Choose Light Gauge Steel Structure?


1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.

 Two Layers Prefab Villa Light Gauge Steel Structure Pre Manufactured Homes 7

Company information:

Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation, and other services as a whole. We always committed to providing every family with a comfortable, safe, and affordable home, and also can provide a one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects, and so on. Our products have been exported to more than 60 countries and NGOs. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture



Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Two Layers Prefab Villa Light Gauge Steel Structure Pre Manufactured Homes 8


Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.
Two Layers Prefab Villa Light Gauge Steel Structure Pre Manufactured Homes 9

Packing&Shiping:

Two Layers Prefab Villa Light Gauge Steel Structure Pre Manufactured Homes 10


Our Services:

If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house

Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.

We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many style house.

FAQ:
answer for the apartment :

1. Q: What is the advantage of this steel structure system house(compare with the traditional brick house)?
A: Long lifetime; Good earthquake-proof, Green and energy saving; Fast and easy to install etc……
2. Q: What is the lifetime for your houses?
A: The durable for the structure is more than 70 years.
3. Q: What is the intensity and thickness of your steel structure material?
A: All our steel structure intensity is S550. We can provide 0.75mm,0.95mm,1.15mm steel material.
4. Q: How about your production equipment and structure design software?
A: Our production equipment is the most advanced import from New-Zealand. Our structure design software also imports from abroad-PRO DESIGN.
5. Q: What are the main technical data of your houses?
A: We can send you the specification and technology details.
