Prefabricated Luxury Villa Steel Frame Houses With PU Sandwich Panel Insulation

Prefabricated Luxury Villa Steel Frame Houses With PU Sandwich Panel Insulation

Prefabricated Luxury Villa Steel Frame Houses With PU Sandwich Panel Insulation
Prefabricated Luxury Villa Steel Frame Houses With PU Sandwich Panel Insulation
Prefabricated Luxury Villa Steel Frame Houses With PU Sandwich Panel Insulation
Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: DEEPBLUE
Certification: AS/NZS,UL,AISI,
Model Number: Kingsley22
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 200-800USD/SQM
Packaging Details: Bare bundle / 40HQ
Delivery Time: 30-45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 12000houses/year
Contact Now
Detailed Product Description
Frame Mterial: 0.75 Mm/0.95 Mm/1.15 Mm Steel Frame With AZ150 Zinc Coating External Wall: 100 Or 50 Mm ALC Panel/WPC Board/fiber Cement
Insulation: Glass Wool/EPS/XPS/PU Sandwich Panel Roofing: EPS Sandwich Panel/steel Roofing/asphalt
Ceiling: Gypsum Board/MGO Board Other Fitting: Toilet, Washbasin,shower ,kitchen,etc
High Light:

pre manufactured homes

,

contemporary modular homes

The design feels dye-in-the-wood prefabricated luxury villa for sale



Why Choose Light Gauge Steel Structure?


1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.



Quick Detail:



Name prefabricated villa Application Villa for living
Color According to your material choice Feature

1.quickly to assemble on-site;

2.good earthquake proof;

3.green, and energy save;

Material light steel and other parts material Certificate

CE,ISO,SAA,ETC





The floor plan:



Prefabricated Luxury Villa Steel Frame Houses With PU Sandwich Panel Insulation 0



MEASUREMENTS
Ground Floor 7.8sq 72.7㎡
First Floor 9.5sq 88.3㎡
Garage 3.7sq 34.6㎡
Outdoor Living 1.0sq 9.0㎡
Porch 0.4sq 3.4sq
Total Area 22.4sq 208.0㎡

Minimum Lot Width 10.0m
Home Length 16.0m
Home Width 8.3m



Applications:



People can use it as House, Office, Villa, and other prefab steel houses.



Description:

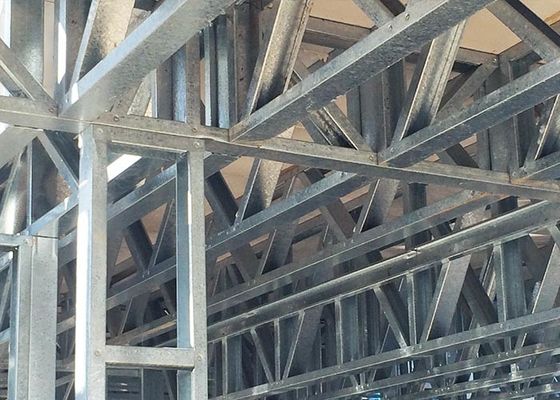

Main structure: Light Gauge Steel

Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board

Insulation material: glass wool/EPS/XPS/PU sandwich panel

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet, washbasin, shower, kitchen, etc.

Lifetime: 100 years for structure



Prefabricated Luxury Villa Steel Frame Houses With PU Sandwich Panel Insulation 1

Prefabricated Luxury Villa Steel Frame Houses With PU Sandwich Panel Insulation 2

Design code:



(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.



(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.



(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.



(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.



Our Services:



If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house



Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.



We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many style house.
