NINGBO DEEPBLUE SMARTHOUSE CO.,LTD
Building Smart Houses for the World!
|Place of Origin:||NINGBO,CHINA|
|Minimum Order Quantity:||1SET|
|Packaging Details:||Bare bundle / 40HQ|
|Wall Material:||Alc Panel/fibre Cement Cladding+MGO Board/gypsum Board||Insulation Material:||EPS/XPS/PU Sandwich Panel Or Glass Wool|
|Ceiling Material:||MGOboard/ Gypsum Board+others||Floor/foundation Material:||Laminate Flooring/wooden/PVC Carpet|
|Other Fitting:||Toilet, Washbasin,shower ,kitchen,etc||Life Time:||100 Years For Structure|

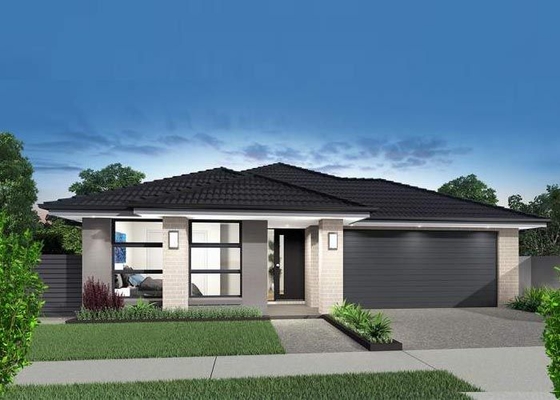

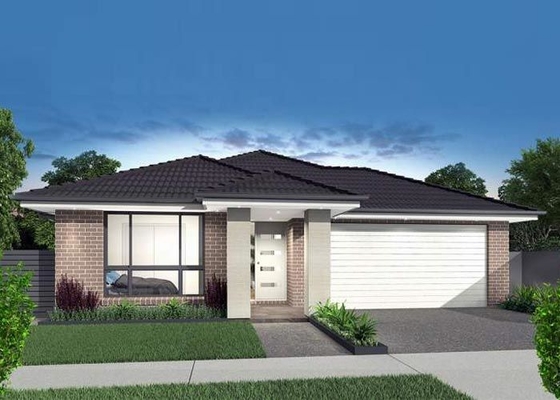

Personalized earthquake-proof prefabricated light steel structure bungalow
|Minimum Lot Width||12.5m|
1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.
|Name||Bungalow homes||Application||Bungalow homes for living|
|Color||depend on customer’s request||Feature||
|Material||light steel and other parts material||Certificate||CE,ISO,SAA,ETC|
1) AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
The floor plan:
If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house
Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.
We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many style house.
