China Prefab Steel House manufacturer
NINGBO DEEPBLUE SMARTHOUSE CO.,LTD

NINGBO DEEPBLUE SMARTHOUSE CO.,LTD

Building Smart Houses for the World!

Home ProductsPrefab Villa

Two Floors Of The Light Steel Prefab Modern Homes Prefabricated Houses

Two Floors Of The Light Steel Prefab Modern Homes Prefabricated Houses

    • Two Floors Of The Light Steel Prefab Modern Homes Prefabricated Houses
    • Two Floors Of The Light Steel Prefab Modern Homes Prefabricated Houses
  • Two Floors Of The Light Steel Prefab Modern Homes Prefabricated Houses

    Product Details:

    Place of Origin: NINGBO,CHINA
    Brand Name: DEEPBLUE
    Certification: AS/NZS,UL,AISI,
    Model Number: LUV-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Price: 200-800USD/SQM
    Packaging Details: Bare bundle / 40HQ
    Delivery Time: 30-45days
    Payment Terms: T/T,L/C,D/P,OA
    Supply Ability: 12000houses/year
    Contact Now
    Detailed Product Description
    Frame Mterial: 0.75mm/0.95mm/1.15mm Steel Frame With AZ150 Zinc Coating External Wall: 100 Or 50mm ALC Panel/WPC Board/fibre Cement
    Insulation: Glass Wool/EPS/XPS/PU Sandwich Panel Ceiling Material: MGOboard/ Gypsum Board+others
    Floor: Laminate/wooden/tile Door: Metal Security Door/Pvc Sliding Door
    Roofing: EPS Sandwich Panel/steel Roofing/asphalt Other Fitting: Toilet, Washbasin,shower ,kitchen,etc

    Two floors of the light steel prefabricated modern luxury villa



    Product Description:



    1.DeepBlue steel structural prefab villa is based on light gauge steel frame system with high performance finishing materials. The whole house can be assembled within couple of hours by 4workers. the materials are the following: 1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and 9degree earthquake.

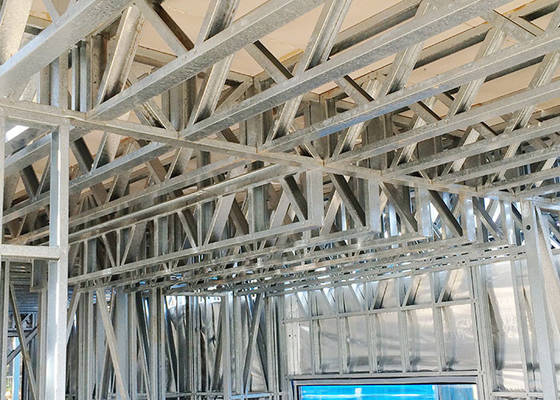

    2. Roof structure: 89mm light gauge steel truss system.

    3. Chassis : 89mm light gauge steel flooring chassis 4. flooring: 18mm fiber cement board with vapor barrior and bamboo flooring or wooden flooring , pvc carpet etc. 5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration 6. interior lining: 9m fiber cement board ,water-proof ,termite-proof ,security and healthy

    7. ceiling: 8mm pvc ceiling panel

    8. insulation: 89mm glasswool insulation with good sound proof performance.

    9.windows: PVC sliding windows

    10.exterior door: high quality aluminim sliding windows 11.interior door: painted wood door 12.bathroom: shower, wash basin, toilet inculded 13. roofing: corrugated steel roofing with gutter system 14. veranda deck: W.P.C veranda flooring.

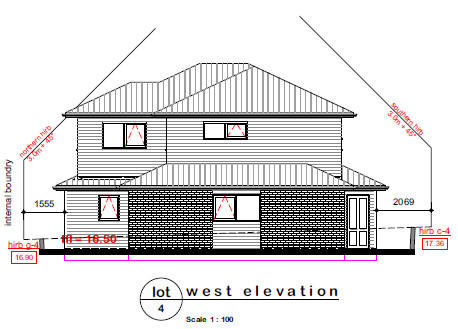

    The floor plan:

    Two Floors Of The Light Steel Prefab Modern Homes Prefabricated Houses



    Why Choose Light Gauge Steel Structure?



    1)Lifetime for structure: 100 years.[0.75~1.2mm , Z275galvanized steel profile, strength:550Mpa ]

    2)Earthquake resistance: mix more than 8 grades.

    3)Wind resistance:max 60m/s.

    4)Fire resistance:all the materials used can be fire resistance.

    5)Snow resistance:max 2.9KN/m²as required

    6)Heat insulation:100 mm in thickness can match 1 m thickness of brick wall.

    7)High acoustic insulation:60db of exterior wall 40db of interior wall

    8)Insect prevention: Free from the damages by insects, such as white ants

    9)Ventilation:a combination of natural ventilation or air supply keep the indoor air fresh and clean

    10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.

    11)Installation:the average is one worker one day install one SQM.

    12)Installation guide:dispatch engineer to guide on site.



    Design code:



    (1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.



    (2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.



    (3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.



    (4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.



    R&D:



    Two Floors Of The Light Steel Prefab Modern Homes Prefabricated Houses

    If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house



    Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.



    We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many buildings.
