Prefab Light Steel Frame House Mobile House Kits To Build Metal Frame Home Kit

Prefab Light Steel Frame House Mobile House Kits To Build Metal Frame Home Kit

2 bedrooms 1 bathrooms 1 living room 1kichen 31.24m²

Foldable house 929#

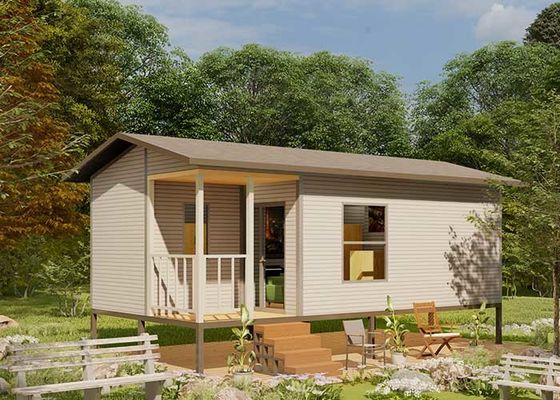

DEEPBLUE foldable house, with advanced folding technology, has completed about 80% of the pre-installation in the factory, folded and loaded into the container for transportation. After arriving at the site, expand the main structure of the house, simply install the furniture then it can be put into use.

Description:

The Foldable House is 7.81 meters long and 4 meters wide. The foldable house is have a washrooms. A wardrobe can be built next to the washroom, and a desk can be placed opposite the bed, which meets the needs of daily living and is economical.


Floorplan
Model: Foldable house 929#
House Width:7810mm
House Length:4000mm
Area:31.24㎡

Deck:2100*1680mm

Building materials:

4. Steel Batten 22 mm steel roof battens & batten 22mm steel
ceiling battens
5. High tensile Corrugated colored roof sheets in 0.42mm thickness,
gable flashings, ridge capping, valleys, barge capping & all fixings if
applicable.
6. Wall cladding: 8mm fiber cement board as cladding
7. Interior lining: 8mm fiber cement board
8. Aluminum sliding windows & sliding doors including standard fly
screens toAustralian Standards and as per plan specifications in
black color.
9. Glass wool R2.5 to main roof area unless otherwise specified.
10. Glass wool R3.5 breathable insulations to all exterior walls & gable
ends if applicable
11. Entrance door- Aluminum sliding door
12. Bathroom door –alum. door with steel frame and weather seal
13. Internal doors- plywood interior door.
14. Flooring: 9mm Laminated flooring
15. Cornering: 90mm coved plasterboard cornice
16. Skirting –MDF skirting
17. Robe & Linen cupboard support – gypsum board cornering.
18. 9mm gypsum board ceiling
19. 8mm cfc soffit lining
20. All P/C items: toilet, shower and washbasin w/mirror
21. Power points as per plan
22. Joinery as per plan

Applications:
Hotel, House, Office, etc.

Product Description:

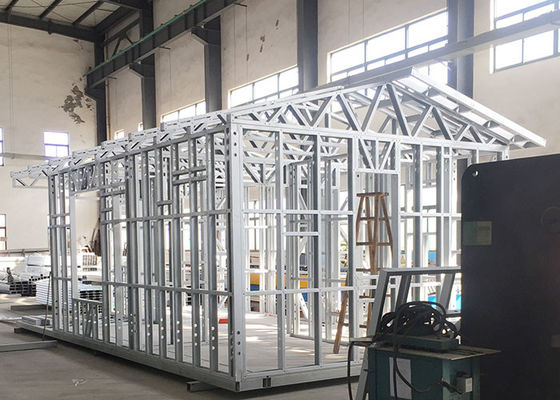

DeepBlue earthquake proof prefabricated bungalow is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers.

Specifications:
ISO standard steel structure house .one or two also three floors available. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. economically.


Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.

Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resist winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.
The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.



Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.
