Place of Origin: | NINGBO,CHINA |
Brand Name: | DEEPBLUE |
Certification: | AS/NZS,UL,AISI, |
Model Number: | DP-apartment-07 |
Minimum Order Quantity: | 1SET |
---|---|
Price: | 150-400USD/SQM |
Packaging Details: | Bare bundle / 40HQ |
Delivery Time: | 30-45days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 12000houses/year |
External Wall: | 100 Or 50mm ALC Panel/fibre Cement | Frame Mterial: | 0.75mm/0.95mm/1.15mm Steel Frame With AZ150 Zinc Coating |
---|---|---|---|
Insulation: | Glass Wool/EPS/XPS/PU Sandwich Panel | Ceiling Material: | MGOboard/ Gypsum Board+others |
Floor: | Laminate/wooden/tile | Door: | Metal Security Door |
Roofing: | EPS Sandwich Panel/steel Roofing/asphalt | Other Fitting: | Toilet, Washbasin,shower ,kitchen,etc |
High Light: | modular apartment buildings,prefab metal buildings |

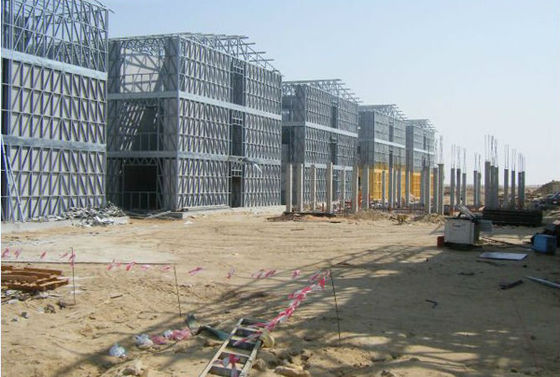

Prefabricated Apartment Building, Steel Structure Office Buildings
Quick Detail:
Name |
apartment building |
Application |
Residents of the apartment |
Color |
White, red, yellow, etc, depending on the customer’s request |
Feature |
1.quickly to assemble on site 2.good earthquake-proof 3.green and energy save |
Material |
light steel and other parts material |
Certificate |
CE,ISO,SAA,ETC |
Description:

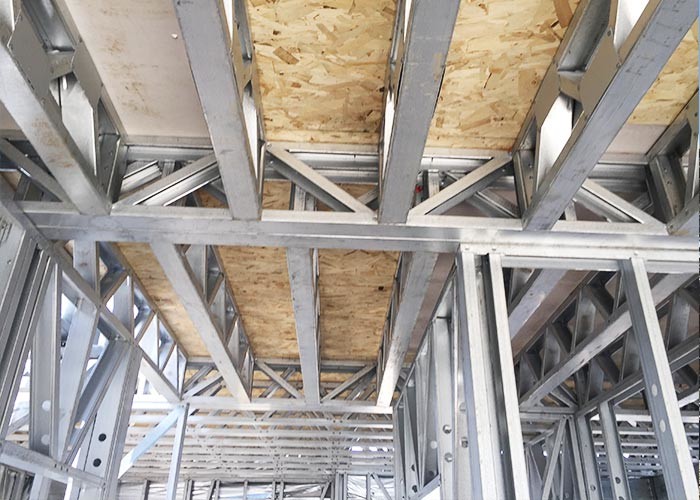

Main structure: Light Gauge Steel
Wall cladding: ALC panel/fiber cement cladding
Insulation material: glass wool
Ceiling material: MGO board/gypsum board
Roof: steel roofing/asphalt shingle
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy/PVC
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.[0.75~1.2mm, AZ150 Alu galvanized steel profile, strength:550Mpa ]
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Company Information
Our Services
If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house
Only Need You To Provide Us: house area, how many floor and bedrooms, luxury or normally, or low-cost configuration.
We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc. many style house.
FAQ
answer for the apartment :
1. Q: What is the advantage of this steel structure system house(compare with the traditional brick house)?
A: Long lifetime; Good earthquake-proof, Green and energy saving; Fast and easy to install, etc……
2. Q: What is the lifetime for your houses?
A: The durability of the structure is more than 70 years.
3. Q: What is the intensity and thickness of your steel structure material?
A: All our steel structure intensity are S550. We can provide 0.75mm,0.95mm,1.15mm steel material.
4. Q: How about your production equipment and structure design software?
A: Our production equipment is the most advanced import from New-Zealand. Our structure design software also imports from abroad-PRO DESIGN.
5. Q: What are the main technical data of your houses?
A: We can send you the specification and technology details.
