Energy Saving Affordable Prefab House Steel Structure Villa Prefabricated Villas

Energy Saving Affordable Prefab House Steel Structure Villa Prefabricated Villas​

Quick Detail:

Description:

Main structure: Light Gauge Steel

Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board

Insulation material: Insulation material

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet, washbasin, shower, kitchen, etc.

Lifetime: 100 years for structure

Applications:

House, Office, Villa, etc.

Specifications:



Product Description

DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following:

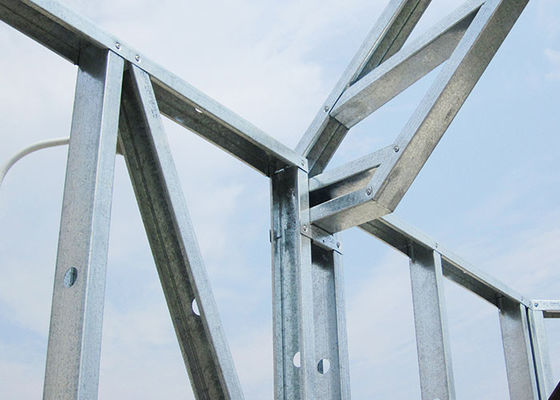

1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard.  the structure can be design to resist 50m/s wind and a 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis: 89mm light gauge steel flooring chassis

4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc.

5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration

6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy

7. ceiling: 8mm PVC ceiling panel

8. insulation: 89mm glass wool insulation with good soundproof performance.

9.windows: PVC sliding windows

10.exterior door: high-quality aluminum sliding windows

11.interior door: painted wood door

12.bathroom: shower, washbasin, toilet included

13. roofing: corrugated steel roofing with the gutter system

14. veranda deck: W.P.C veranda flooring.

ISO standard light gauge steel for the main structure. fireproof, heat insulation, wind, and earthquake resistance. green, energy-saving. also economically.

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.[0.75~1.2mm, Z275galvanized steel profile, strength:550Mpa ]

2)Earthquake resistance: mix more than 8 grades.

3)Wind resistance:max 60m/s.

4)Fire resistance: all the materials used can be fire-resistant.

5)Snow resistance: max 2.9KN/m²as required

6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.

7)High acoustic insulation:60db of exterior wall 40db of interior wall

8)Insect prevention: Free from the damages by insects, such as white ants

9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean

10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.

11)Installation: the average is one worker one day install one SQM.

12)Installation guide: dispatch engineer to guide on site.

Production in DeepBlue factory:

Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.

(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.

(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.

(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house

Only Need You To Provide Us: house area, how many floor and bedrooms, luxury or normally, or low-cost configuation.

We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc. many buildings.

Your first choice, Deepblue Prefabricated house in China.
