Prefabricated Light Steel Frame House High End Hotel With Big Windows

Prefabricated Light Steel Frame House High End Hotel With Big Windows

Prefabricated Light Steel Frame House High End Hotel With Big Windows
Prefabricated Light Steel Frame House High End Hotel With Big Windows
Prefabricated Light Steel Frame House High End Hotel With Big Windows
Product Details:
Place of Origin: NINGBO,CHINA
Brand Name: DEEPBLUE
Certification: AS/NZS,UL,AISI,
Model Number: 2010
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 200-800USD/SQM
Packaging Details: Bare bundle / 40HQ
Delivery Time: 30-45days
Payment Terms: T/T,L/C,D/P,OA
Supply Ability: 12000houses/year
Contact Now
Detailed Product Description
External Wall: 100 Or 50 Mm ALC Panel/WPC Board/fiber Cement Frame Material: 0.75 Mm/0.95 Mm/1.15 Mm Steel Frame With AZ150 Zinc Coating
Ceiling Material: MGO Board/ Gypsum Board+others Insulation: Glass Wool/EPS/XPS/PU Sandwich Panel
Roofing: EPS Sandwich Panel/steel Roofing/asphalt Floor: Laminate/wooden/tile
Other Fitting: Toilet, Washbasin,shower ,kitchen,etc Stye: Morden
High Light:

MGO Board Prefab Steel House

,

Big Windows Prefab Steel House

,

Earthquake Proof Prefabricated House

CE Certificate Prefab Steel House , Light Steel Frame Construction Villa With WPC Cladding

Quick Detail:


Name prefabricated villa Application Villa for living
Color many option Feature 1.quickly to assemble on site;
2.good earthquake proof;
3.green,and energy save;
Material light steel and other decorate materials Certificate CE,ISO,SAA,ETC



This is a leisure club, and the front desk is a service center. It has many independent rooms of its own, equipped with tea room, movie room, chess and card room, etc.



The building is a 14 meter long and 10 meters wide 2 storey Boutique Hotel, with access to the second floor through the stairs on the side of the house. There are four rooms on each floor. The rooms are standard guest rooms with bathrooms. And each room has a back door, which leads to the back garden.

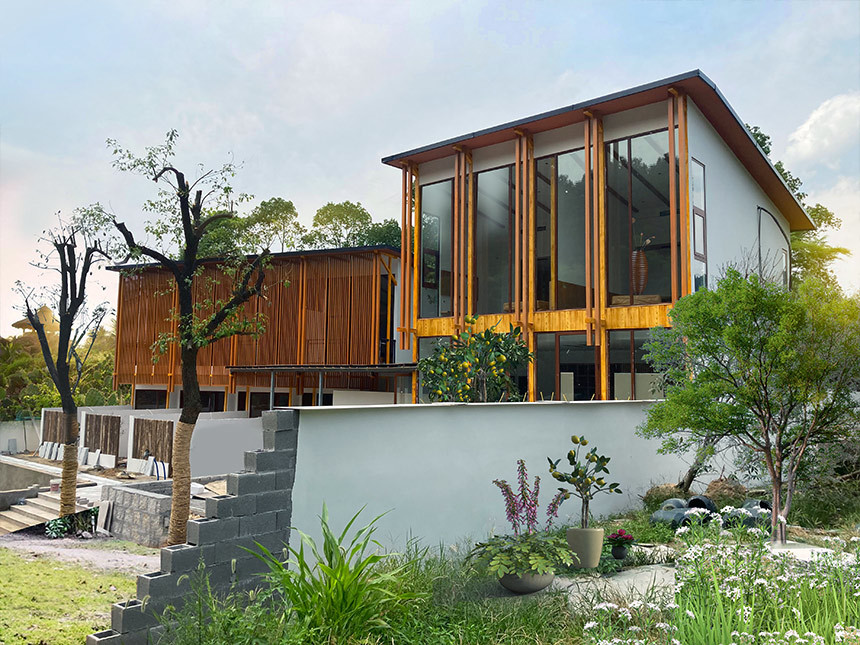

Prefabricated Light Steel Frame House High End Hotel With Big Windows 0

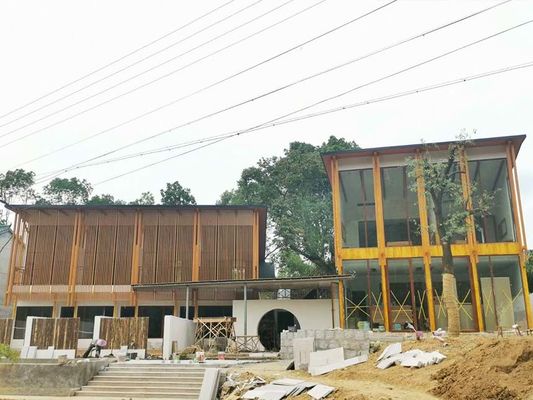

Prefabricated Light Steel Frame House High End Hotel With Big Windows 1



Description:



Main structure: Light Gauge Steel.

Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board.

Insulation material: glass wool/EPS/XPS/PU sandwich panel.

Ceiling material: MGO board/gypsum board.

Floor/foundation material: laminate flooring/wooden/PVC carpet.

Door: steel security door/WPC or plywood door.

Window: aluminum alloy/PVC.

Roofing: EPS sandwich panel/steel roofing/asphalt shingle.

Other fittings: toilet, washbasin, shower, kitchen, etc.

Lifetime: 100 years for structure.



Quick Detail:



Name prefabricated villa Application Villa for living
Color According to your material choice Feature

1.quickly to assemble on-site;

2.good earthquake proof;

3.green and energy save;

Material light steel and other parts material Certificate CE,ISO,SAA,ETC




Why Choose Light Gauge Steel Structure?


1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire resistance.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.



Design code:



(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.



(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.



(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.



(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.



Prefabricated Light Steel Frame House High End Hotel With Big Windows 2





Our Services:



If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house



Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.



We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many style house.



Prefabricated Light Steel Frame House High End Hotel With Big Windows 3
