|Place of Origin:||NINGBO,CHINA|
|Certification:||ISO9001, CE, AU/NZS|
|Model Number:||VILLA 9|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||Bare bundle / 40HQ|
|Delivery Time:||30-45 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||12000 houses/year|
|Window:||PVC Sliding Window||Door:||Steel Door,Aluminum Alloy Door|
|Structure:||Galvanized Steel Frame||Floor:||28mm Plywood + PVC Flooring|
|Life Span:||100 Years||Roof:||EPS Sandwich Tile|
|Wall:||Sandwich Panel||Installation:||Instruct Installation,Provide Installation Video|
Sandwich Panel Modular Home Kits,
Prefab Modular Home Kits
Galvanized Sandwich Panel Prefab Steel Homes Prefab Modular Home Kits
|Name||prefabricated villa||Application||Villa for living|
1.quickly to assemble on-site;
|Material||light steel and other parts material||Certificate||CE,ISO,SAA,ETC|
House, Office, Villa, etc.
1. Main steel structure: Q550 standard steel structure, which is thin-walled cold-formed light steel, use mortise and tenon method and screw to strengthen it, that is easy to install but very strong, the life would be 50 years.
2. Surface Treatment: Zinc Plating
3. Wall & Roof: MABIS exclusive patented panel - aluminum alloy with 100mm thickness high-density polyurethane composite board with good thermal insulation and sound insulation advantage. The hard PU layer is fireproof, fire resistance, and high-temperature resistance. The material additional fire retardant, so the material characteristic is difficult autoignition and self-extinguishing, furthermore haven't harmful gases when they are at high temperature.
4. Window & door: Aluminum alloy frame with hollow double glass window and Wood door or glass door
ISO standard light gauge steel for the main structure. fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.
|1||AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.|
|2||AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.|
|3||BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.|
|4||ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.|

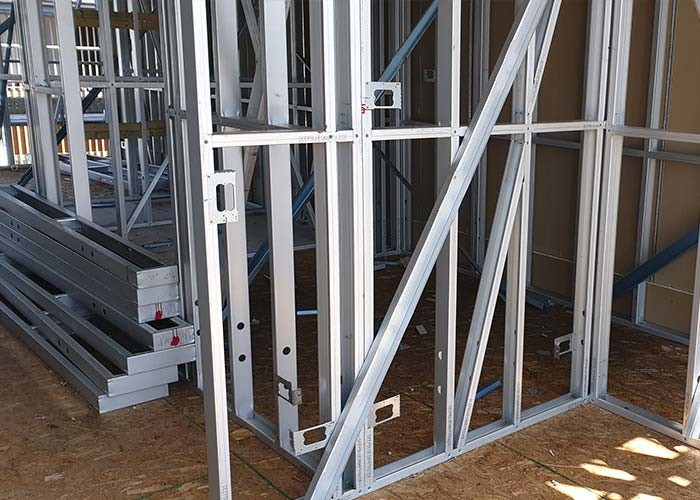

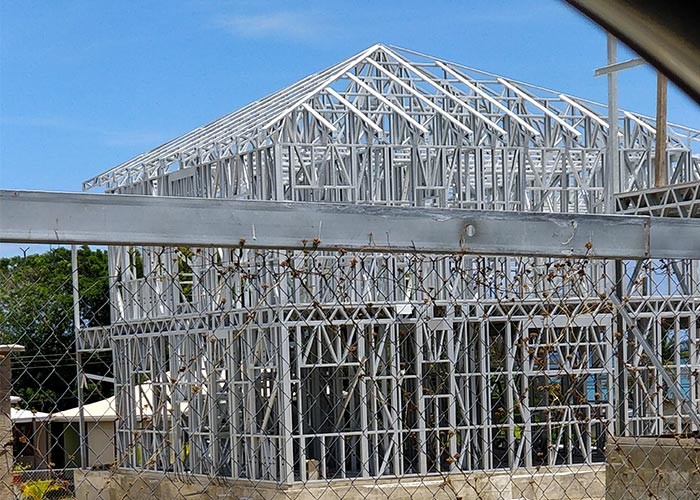

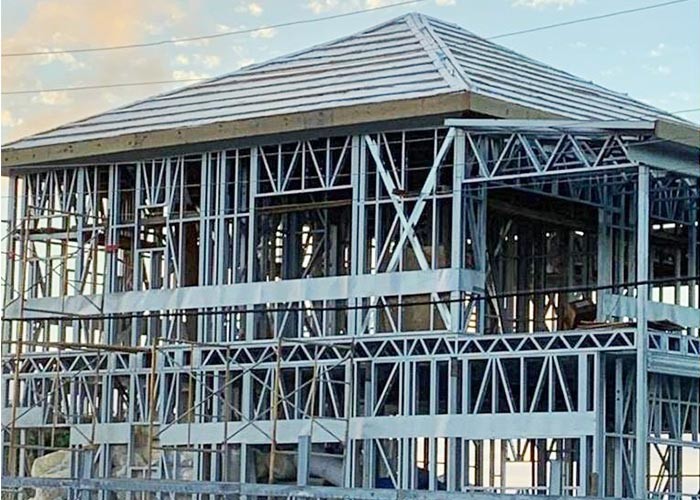

Introduction to the LGS (Light Gauge Steel) system:
LGS steel construction uses a triangle truss structure of cold-formed steel, its main wall uses cold-formed steel as frame, bolting makes the housing body tightly connected to the ground, with good ductility and anti-seismic performance. LGS steel construction’s seismic fortification is up to 9 degree, and steel structure house causes less damage in the earthquakes than other houses.
Cold-formed lightweight steel structure buildings adopt G550 high strength steel with good steel integrity and flexibility, which can resist 50m/s wind speed. Life and property will be well protected.
Light steel structure house is all composed of cold-formed light steel structure parts which adopt galvanized/aluminum-zinc and anti-corrosion cold rolling steel plate. This can effectively avoid being rusted during the construction and using steel structure parts and increase the lifespan to more than 90 years.
The effect of sound insulation is an important indicator for the assessment of residential. Light steel system walls formed by a light steel structure, insulation materials, and fiberboard have perfect sound insulation and shock absorption technology and meet the national standards for building sound insulation.
Using energy-efficient LGS steel wall system, respiratory function, it can adjust indoor air humidity. The roof with ventilation function, which can make the house internally over the formation of the flow of air, ensure that the roof ventilation and cooling of the internal demand. The light steel integrated housing span can reach 6 to 12 meters to provide a larger living space for residents and can also be freely divided. The integrated light steel building materials are green environmentally friendly and keep healthy.
Company introduction :
Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, production, sales, transportation, installation, and other services. We always committed to providing every family with a comfortable, safe, and affordable home, and can provide a one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects, and so on. Our products have been exported to more than 60 countries and NGOs. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture.
If You Need: prefabricated kit home; prefab kit home. steel structure homes.steel frame house
Only Need You To Provide Us: house area, how many floors and bedrooms, luxury or normally, or low-cost configuration.
We Can Provide You: villa; bungalow; low-cost house; granny flat; apartment etc.many style house.
Production in DeepBlue factory:
How To Assemble:
