Place of Origin: | NINGBO,CHINA |
Brand Name: | DEEPBLUE |
Certification: | AS/NZS,UL,AISI, |
Model Number: | DPBL-154# |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | 200-500 USD/SQM |
Packaging Details: | Bare bundle / 40HQ |
Delivery Time: | 45-60 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 12000 houses/year |
Main Structure: | Light Gauge Steel | Bedroom: | 2 |
---|---|---|---|
Bathroom: | 2 | Story: | 1 |
Other Fittings: | Toilet,washbasin,shower,kitchen Etc. | Life Time: | 100 Years For Structure. |
High Light: | pre manufactured homes,modern modular homes |
Worldwide Hot Sale With High-Quality Prefabricated light steel Villas
Quick Detail:
Name | prefabricated villa | Application | Villa for living |
Color | according to customer requirements | Feature |
1.quickly to assemble on-site; 2.good earthquake proof; 3.green and energy save; |
material | light steel and other parts material | Certificate |
CE,ISO,SAA,ETC |
The floor plan:
MEASUREMENTS | ||
Stories | 1 | |
Total Area | 87㎡ | |
Applications:
House, Office, Villa, etc.
Description:

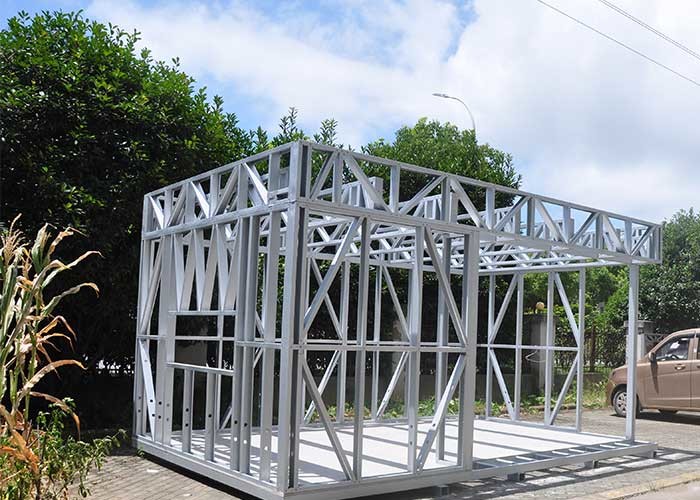

Main structure: Light Gauge Steel
Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board
Insulation material: glass wool/EPS/XPS/PU sandwich panel
Ceiling material: MGO board/gypsum board
Floor/foundation material: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or plywood door
Window: aluminum alloy/PVC
Roofing: EPS sandwich panel/steel roofing/asphalt shingle
Other fittings: toilet, washbasin, shower, kitchen, etc.
Lifetime: 100 years for structure.
interior decoration chart:
1) Lifetime for structure: 100 years.
2) Earthquake resistance: mix more than 8 grades.
3) Wind resistance: max 60m/s.
4) Fire resistance: all the materials used can be fire-resistant.
5) Snow resistance: max 2.9KN/m²as required
6) Heat insulation: 100 mm in thickness can match 1 m thickness of the brick wall.
7) High acoustic insulation: 60db of exterior wall 40db of interior wall
8) Insect prevention: Free from the damages by insects, such as white ants
9) Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10) Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11) Installation: the average is one worker one day install one SQM.
12) Installation guide: dispatch engineer to guide on site.
1) AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
2) AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
3) BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
4) ENV1993-1-3 means Euro code 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Our Services:
If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house
Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.
We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many style house.
