EU/AU/NZ/USA Light Steel Framing Prefabricated Luxury Duplex Villa

EU/AU/NZ/USA Light Steel Framing Prefabricated Luxury Duplex Villa

West Ryde duplex

12 bedrooms 12 bathrooms 2 kichen 4 living room 668m²

This is a double-storey townhouse on a plot of approximately 416 square metres, with a large yard at the front and also a small garden at the back. Both houses have a similar layout: on the ground floor there is a garage with three sliding doors into the living room. On the ground floor there is an opening kitchen and dining room, one bedroom and two bathrooms; on the first floor there are five rooms, four bathrooms and three balconies, making it very comfortable to live in.

The two-storey townhouse has a large yard at the front and a small rear garden. The plot area is 2274 square meters, with a length of 16.5 meters and an average width of 7.62 meters.
The townhouse’s front yard is a safe, clean and healthy environment, A balcony with glass wall dded to let more air flow in the house, there will be 2 IKEA steam chestnut long sofas and 2 steel wooden chairs outdoor;the small north balcony also adds a half-buried sofa. The rest furniture are added according to practicality: an Ikea sliding board can meet children’s reading room; two 1xx100mm living fences belong to different rooms for stereo listening.

Quick Detail:

Description:

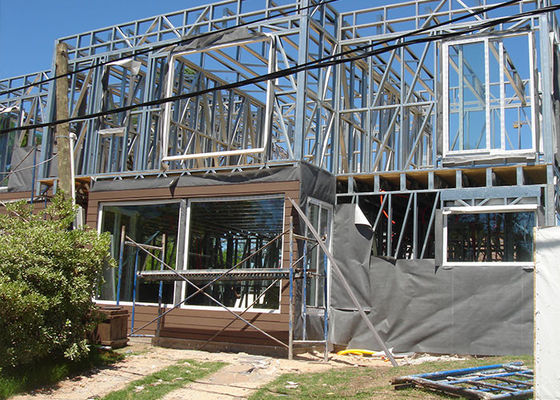

Main structure: Light Gauge Steel

Wall material: ALC panel/fiber cement cladding+MGO board/gypsum board

Insulation material: Insulation material

Ceiling material: MGO board/gypsum board

Floor/foundation material: laminate flooring/wooden/PVC carpet

Door: steel security door/WPC or plywood door

Window: aluminum alloy/PVC

Roofing: EPS sandwich panel/steel roofing/asphalt shingle

Other fittings: toilet, washbasin, shower, kitchen, etc.

Lifetime: 100 years for structure


Applications:

House, Office, Villa, etc.

Floor plan:

Ground Floor:338㎡

First Floor:330㎡

Total Area:668㎡

House Width:22.02m

House Length:17.11m

Garage:18.84㎡

This is a double-storey townhouse on a plot of approximately 416 square metres, with a large yard at the front and also a small garden at the back. Both houses have a similar layout: on the ground floor there is a garage with three sliding doors into the living room. On the ground floor there is an opening kitchen and dining room, one bedroom and two bathrooms; on the first floor there are five rooms, four bathrooms and three balconies, making it very comfortable to live in.

Specifications



Product Description

DeepBlue steel structural prefab villa is based on a light gauge steel frame system with high-performance finishing materials. The whole house can be assembled within a couple of hours by 4workers. the materials are the following: 1. Main structure: 89mm light gauge steel framing system based on AS/NZS 4600 standard. the structure can be design to resist 50m/s wind and 9degree earthquake.

2. Roof structure: 89mm light gauge steel truss system.

3. Chassis: 89mm light gauge steel flooring chassis 4. flooring: 18mm fiber cement board with vapor barrier and bamboo flooring or wooden flooring, PVC carpet, etc. 5.Wall cladding: 16mm PU insulated steel sandwich panel with beautiful decoration 6. interior lining: 9m fiber cement board,water-proof,termite-proof, security and healthy

7. ceiling: 8mm PVC ceiling panel

8. insulation: 89mm glass wool insulation with good soundproof performance.

9.windows: PVC sliding windows

10.exterior door: high-quality aluminum sliding windows 11.interior door: painted wood door 12.bathroom: shower, washbasin, toilet included 13. roofing: corrugated steel roofing with gutter system 14. veranda deck: W.P.C veranda flooring.

ISO standard light gauge steel for the main structure.fireproof, heat insulation, wind, and earthquake resistance.green, energy saving. also economically.

Technology Details:

Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.


Design code:

(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.

Resistant to various weather conditions, due to its light gauge steel framing system, DeepBlue Mobile Homes can resists winds up to 50m/s, 50cm snow loads as well withstand earthquakes due to its special steel structure technology.

The DeepBlue Mobile Houses manufacturing technology is truly a mature product characterized by flexibility and innovative design and solution.


Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.

Your first choice, Deepblue Prefabricated house in China.
