Modular Home Prefabricated Light Steel Framed Tiny House On Wheels Australia Standard
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bedroom | Include | Door_Type | Solid Wood/fiberglass |
|---|---|---|---|
| Internal Wall Cladding | Integrated Wall Panel | Kitchen | Cabinet, Sink, Bench Top, Faucet |
| Light Steel Structure | AS1397 G550 Z275 0.75/0.95mm Roof Truss | Roof_Type | Roofing Tile/Ceiling Panel |
| Structure | Light Gauge Steel Framing System | Wall | Metal-PU Sandwich Board 16mm |
| Weight | <3.5T | Window | Aluminum Window |
| High Light | Prefabricated Light Steel Framed Tiny House,Light Steel Modular Home On Wheels |
||
Product Description

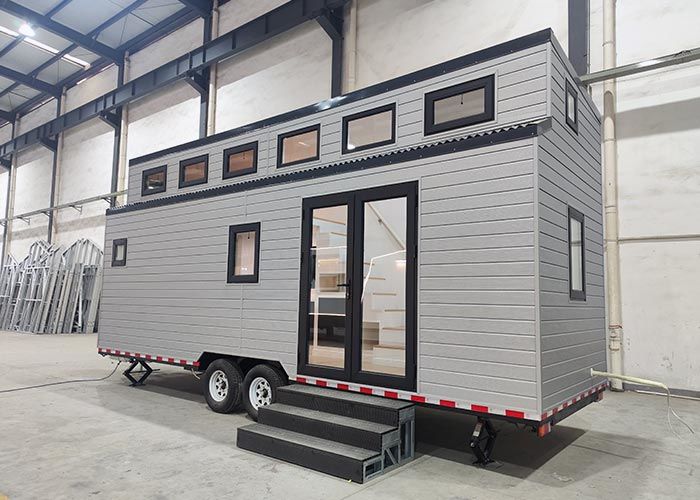

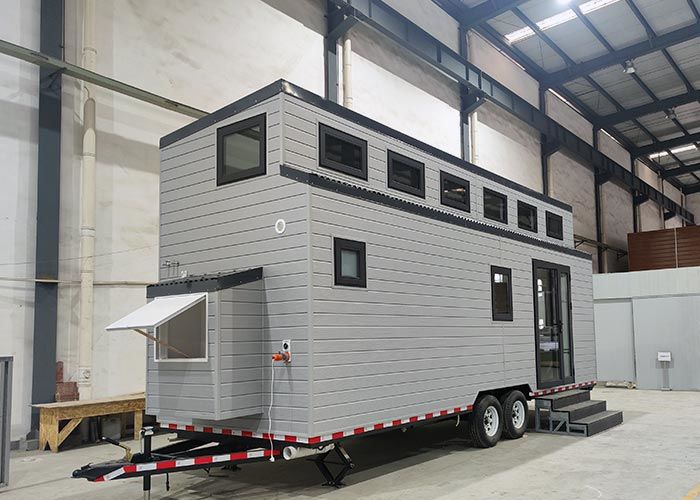

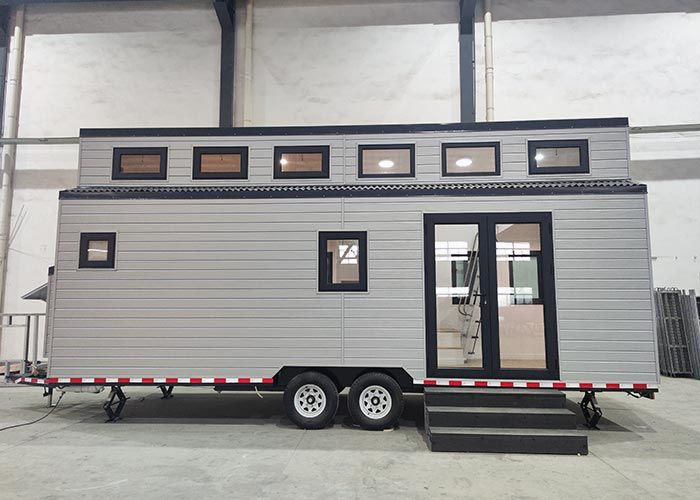

Modular Home Prefabricated Light Steel Framed Tiny House On Wheels Australia Standard
Cider Box Tiny House On Whees
2 bedroom 1 bathroom 1 Kitchen 27.58 m²
Step into the enchanting world of the Cider Box Tiny House, where every inch is a dance between elegance and purpose. This diminutive haven, spanning a mere 27.58 m², emerges as a testament to sustainable opulence, adorned with a light steel frame and walls cloaked in the embrace of metal PU sandwich panels.
| Name: | Cider Box Tiny House |
| Total area: | 27.58㎡ |
| External size: | 2.35*7.4m |
| Internal size: | 2.08*7.05m |
| Total weight: | 3.5 tons |
| Hight: |
＜4m
|
The Cider Box, a lyrical symphony of design, unfolds to reveal 2 bedrooms, 1 bathroom, and a kitchen that echoes with the whispers of culinary dreams. Beyond its compact façade lies a commitment to an eco-odyssey, where durable materials coalesce to create a dwelling that stands proudly against the relentless march of time.
DeepBlue SmartHouse takes innovation to new heights with its versatile range of products, prominently featuring the ingenious Cider Box Tiny House. Tailored for a life less ordinary, these tiny houses transcend the conventional, seamlessly fitting into diverse lifestyles.
Basic Details:
The tiny house is equipped with a living room/kitchen/bedroom/bathroom.etc
Include:
| Trailer | |
| Roofing | 0.5mm colorbond sheet |
| External wall | metal PU sandwich panel |
| Internal wall | integrated wall panel |
| Flooring | laminated flooring |
| Kitchen | standard kitchen(cabinet, stone benchtop, sink, faucet) |
| Bathroom | show, toilet, washbasin |
| Length | 7.4m |
| Width | 2.35m |
| Highly | <4m |
| Weight | <=3.5T |
| Window and doors | glass alu. window and laminated door |
| Electrical and plumbing system |
Applications:
Hotel, House, Office, etc.
DeepBlue SmartHouse takes pride in their commitment to delivering high-quality, innovative, and sustainable housing solutions. By combining cutting-edge design with eco-friendly materials and construction techniques, they have created the Tiny House as an energy-efficient and environmentally conscious living space.
Why Choose Light Gauge Steel Structure?
1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance: all the materials used can be fire-resistant.
5)Snow resistance: max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of the brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation: a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorating materials.
11)Installation: the average is one worker one day install one SQM.
12)Installation guide: dispatch engineer to guide on site.
Design code:
(1)AISI S100 North American Specification for the Design of Cold-Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for the design of cold-formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.
Deepblue Smarthouse is a leading Chinese company that specializes in designing and constructing prefab homes using light steel frame technology. Our comprehensive end-to-end building services cover everything from design and engineering to manufacturing,sourcing kitset of materials for whole buildings, and related services. As a one-stop solution provider, we are committed to delivering efficient, sustainable, and cost-effective building solutions for our clients, including housing developers, builders, and owner-builders.
Light steel frame technology is gaining popularity for its many advantages, such as faster construction times, greater energy efficiency, and better durability in extreme weather conditions. At Deepblue Smarthouse, we understand the importance of quality and sustainability in the building process, and we strive to use eco-friendly materials and processes in all our projects.
Based on our patented foldable technology, transportation and erection can be done in a very simple and convenient way in order to save lots of time, energy, and unnecessary expenses.
Your first choice, Deepblue Prefabrica
