Contact Person : David Chen
Phone Number : +86-19957023962
Whatsapp : +8618067226015

EU/USA/NZ/AU Standard Economic Low Cost Modern Prefab Steel Water Bungalow

Place of Origin Zhejiang, China (Mainland)
Brand Name Deepblue
Certification ISO9001, CE, AU/NZS
Model Number wooden bungalow
Minimum Order Quantity 4 sets
Price Negotiation
Packaging Details 40'HQ container
Delivery Time 30~45 days
Payment Terms L/C, T/T, Western Union
Supply Ability 15000 Square Meter/Square Meters per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Use Hotel, House, Kiosk,Booth, Office, Shop, Villa, Workshop,Plant Design Customer Design Avaliable
Wall Material ALC Panel/fibre Cement Cladding+gypsum Board Movable Optional
Ceiling Material CFC Board/ Gypsum Board+others Other Fitting Toilet, Washbasin,shower ,kitchen,etc
Door Steel Security Door/WPC Or Wooden Door Frame Material 0.75mm/0.95mm/1.15mm Steel Frame With AZ150 Zinc Coating
Cladding WPC And Colorbond Windows Double Glass Windows
High Light

steel frame houses

,

prefab steel buildings

,

Prefabricated Wood Bungalow

Leave a Message
Product Description

EU/USA/NZ/Australia Standard Economic Low Cost Modern Prefab Steel water bungalow Prefabricated Wood Bungalow

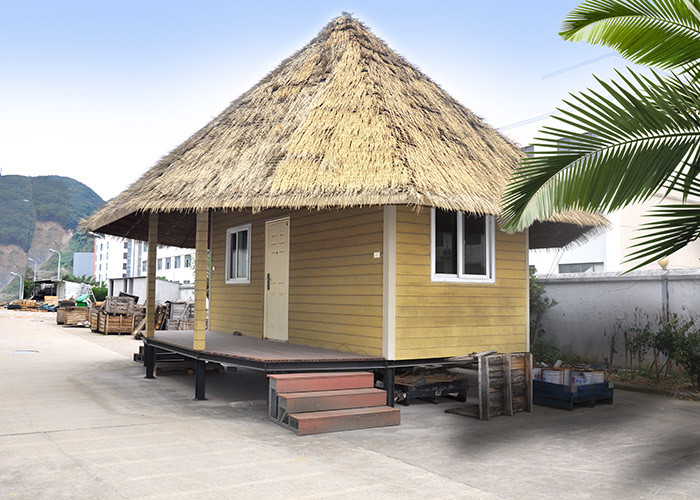

The housetop of arc top adds quadrate main body structure, suit seaside holiday very much when living.And the roof is made of aluminum, which is very durable.The bottom of the house has a base, very moisture-proof, and there is a step, very humanization.



The house has a base at the bottom, which is very damp.

There is a veranda in front of the door, you can sit and look at the scenery.

The roof is made of aluminum, which is very durable.



EU/USA/NZ/AU Standard Economic Low Cost Modern Prefab Steel Water Bungalow 0



Quick Detail:

Name wooden bungalow Application holiday living, working studio, yard studio
Color as picture Feature 1.U.K engineer approved;
2.Earthquake,cyclone and fire proof;
3.100years life;
4.Green,Energy save
Material light steel frame and other parts material Certificate CE,ISO,SAA,ETC



Description:

Main structure: Light Gauge Steel Frame
Wall cladding: WPC cladding
Insulation material: Glass wool/ Rock Wool
Ceiling material: PVC/Gypsum board+others
Roof: colorbond
Flooring: laminate flooring/wooden/PVC carpet
Door: steel security door/WPC or wooden door
Window: aluminum alloy/PVC
Other fittings: toilet,washbasin,shower,kitchen etc.
Life time: 100 years for structure


Applications:

toilet,washbasin,shower,kitchen,study room Hotel, House, Kiosk,Booth, Office, Shop, Villa, Workshop,Plant etc.



Specifications



No.
Item
Material
Specification
1
Foundation
Fixing to foundation
Chemical bolt
2
Structure
Steel frame wall
0.75/0.95/1.15mm steel wall
Roof truss
0.75/0.95/1.15mm steel truss
Joist (chassis)
0.75/0.95/1.15mm steel joist
3
Roofing system
Batten
35mm batten
Vapor barrier
Normal vapor barrier
Tile
Optional
Insulation
Glasswool
4
Ceiling system
Batten
22mm batten
Ceiling
Gypsum/MGO board, etc.
Insulation
Glasswool
5
Exterior wall
Ext. wall cladding
Optional
Vapor barrier
Normal vapor barrier
Insulation
Glasswool
6
Interior wall
Lining
Optional
Insulation
Glasswool
7
Floor system
Underneath of floor
CFC/ALC board, etc.
Flooring
Optional
Insulation
Glasswool
8
Kitchen
(if in plan)
Kitchen cabinet
Optional
Counter top
Optional
Sink
Optional
9
Bathroom
(if in plan)
Toilet
Optional
Washbasin
Optional
Shower
Optional
10
Doors and windows
Exterior door
Optional
Interior door
Optional
Window
Optional


Why Choose Light Gauge Steel Structure?

1)Lifetime for structure: 100 years.
2)Earthquake resistance: mix more than 8 grades.
3)Wind resistance:max 60m/s.
4)Fire resistance:all the materials used can be fire resistance.
5)Snow resistance:max 2.9KN/m²as required
6)Heat insulation:100 mm in thickness can match 1 m thickness of brick wall.
7)High acoustic insulation:60db of exterior wall 40db of interior wall
8)Insect prevention: Free from the damages by insects, such as white ants
9)Ventilation:a combination of natural ventilation or air supply keep the indoor air fresh and clean
10)Packing and delivery: 140SQM/ 40'HQ container for structure only and 90SQM/ 40'HQ container for structure with decorate materials.
11)Installation:the average is one worker one day install one SQM.
12)Installation guide:dispatch engineer to guide on site.


Design code:

(1)AISI S100 North American Specification for the Design of Cold Formed Steel Structural Members published by the American Iron and Steel Institute (AISI) in the United States.
(2)AS/NZS 4600 Australian/New Zealand Standard-Cold-formed steel structures jointly published by Standards Australia and Standards New Zealand.
(3)BS 5950-5 Structural use of steelwork in building-Part 5. Code of practice for design of cold formed thin gauge sections published by BSI in the UK.
(4)ENV1993-1-3 means Eurocode 3: Design of steel structures; Part 1.3: General rules, Supplementary rules for cold-formed thin gauge members.



Product





EU/USA/NZ/AU Standard Economic Low Cost Modern Prefab Steel Water Bungalow 1

EU/USA/NZ/AU Standard Economic Low Cost Modern Prefab Steel Water Bungalow 2EU/USA/NZ/AU Standard Economic Low Cost Modern Prefab Steel Water Bungalow 3EU/USA/NZ/AU Standard Economic Low Cost Modern Prefab Steel Water Bungalow 4









Company Introduction



Deepblue Smarthouse was founded in 2009, a high-tech enterprise which integrated the ability of design, procurement, production, sales, transportation, installation and other services as a whole. We always committed to providing everyone with a comfortable, safe and affordable home, and also can provide one-stop service for customers in this field. At present, we have completed many overseas real estate projects, large resort projects and so on. Our products have been exported to more than 60 countries and NGO. With 59 patents of invention and utility models, we have built more than 5,000 houses and won many awards in design and architecture.



Deepblue Smarthouse is focused on provide it’s client with professional smart housing solutions through products that result in unprecedented customer satisfaction and long term relationships that allow us as partners, to deliver smart houses for the world.





EU/USA/NZ/AU Standard Economic Low Cost Modern Prefab Steel Water Bungalow 5

Our Advantages:


1. Light steel structure has the characteristics of anti-earthquake, anti-hurricane, long life-span, quick and easy installation, recyclable, comfortable living and flexible design, etc.
2. With over 10 years experience in the Prefab Housing Business.
3. Owner of unique folding design patent.
4. We have advanced production technology and complete supply chain system.
5. Supply both Luxury Housing and Social Housing.
6. Excellent understanding in Developer/Builder relationship requirements.
7. Expert at low cost housing solutions for government.



Our Services



If You Need: prefabricated kit home; prefab kit home.steel structure homes.steel frame house, light steel structure, Tiny House on wheels, social house, apartment building, commercial building...



Only Need You To Provide Us:house area,how many floor and bedrooms,luxury or normally,or low cost configuation.



We Can Provide You:villa;bungalw;low cost house;granny flat;apartment etc.many style house.
